Miniature Relieved Taper Head Cutters are used only for exceptionally fine cutting work when access to the cutting area is difficult. Relieved head allows for access underneath objects.
542X • Overall Length: 4.6” (117mm) - Tip Length: .4” (10mm)
742X • Overall Length: 5.6” (143mm) - Tip Length: .4” (10mm)
Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.
All Cutting Capacity Ratings are for soft copper wire.
| Model | Cut | Inch | MM | AWG |

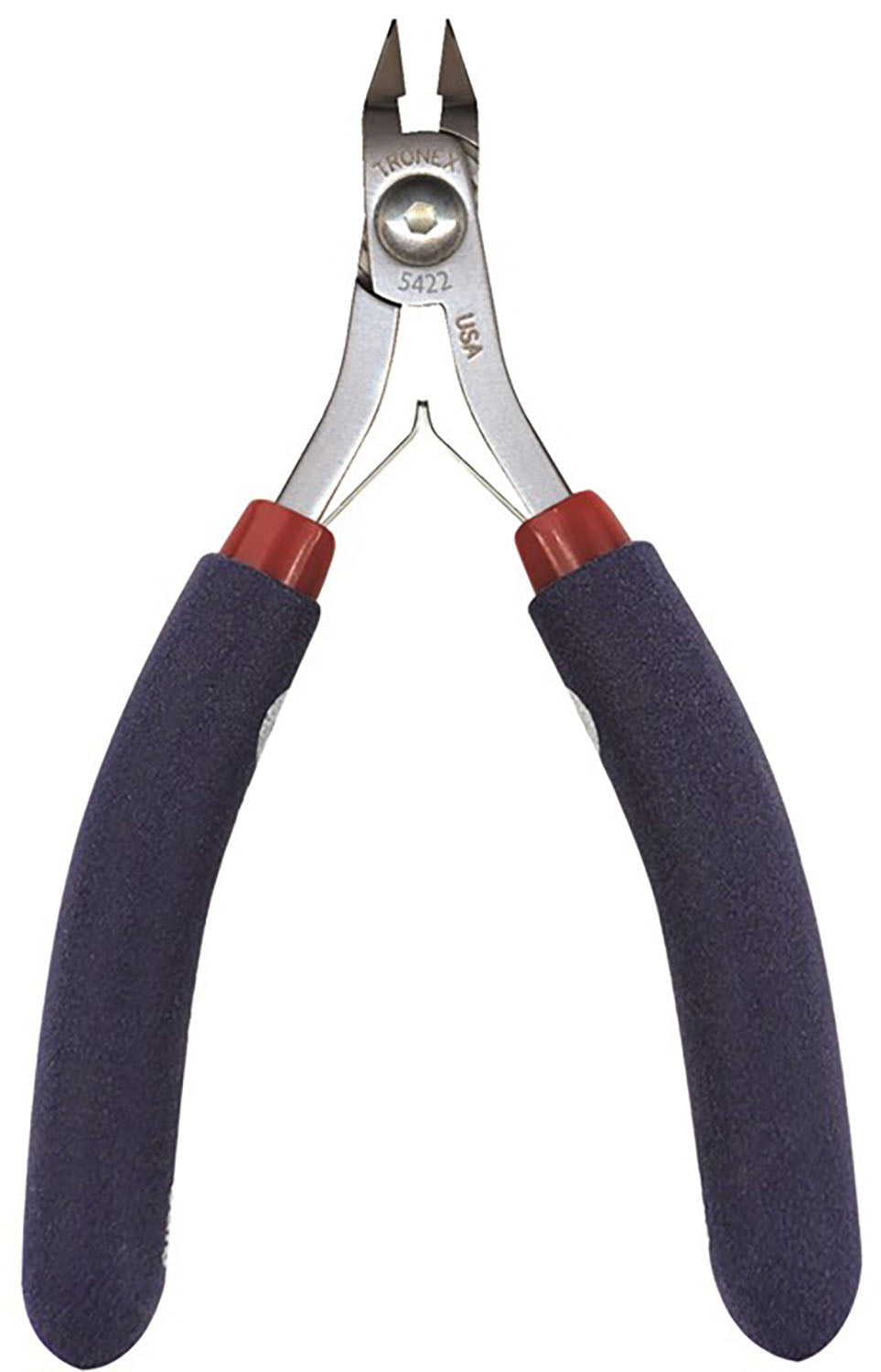

| 5422/7422 | Flush | 0.004 - 0.0403 | 0.1016 - 1.02362 | 38-18 |

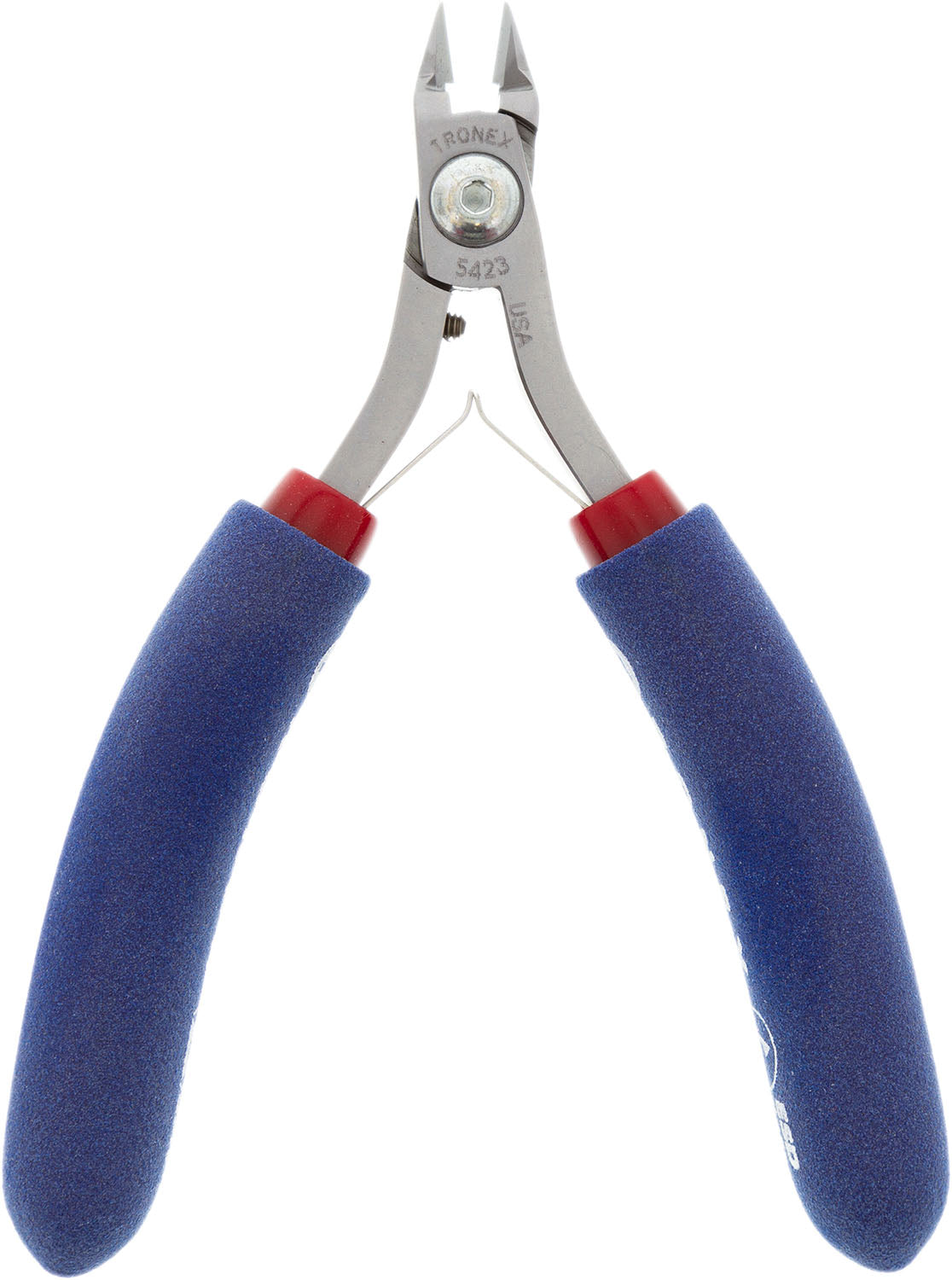

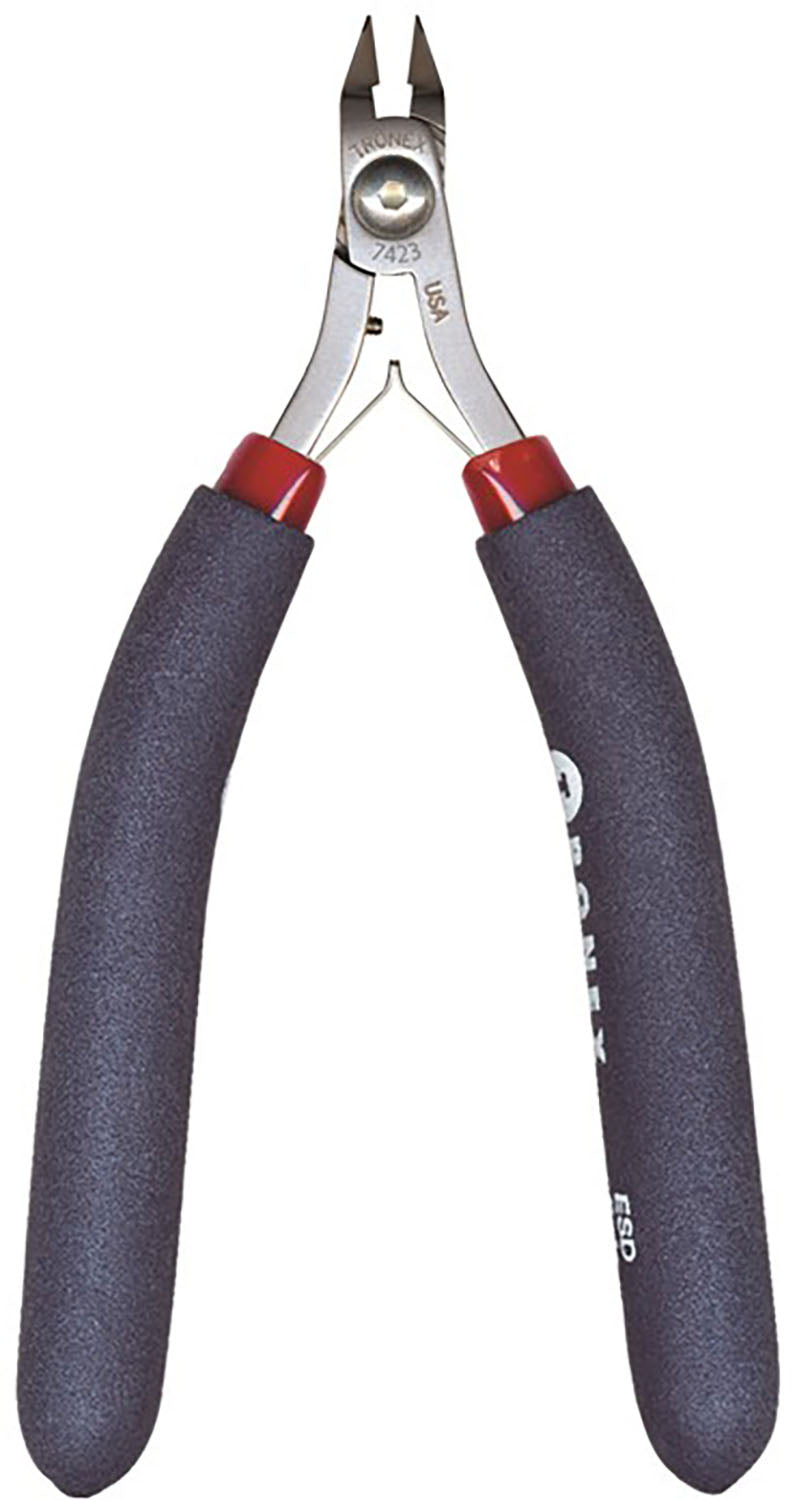

| 5423/7423 | Razor Flush | 0.004 - 0.032 | 0.1016 - 0.8128 | 38-20 |
